4-Channel HD PoE NVR Kit TV-NVR104K (Version v1.0R)

£700.00

Description

Standalone 4-Channel PoE network video recorder

Pre-installed 1 TB SATA HDD

Includes two TRENDnet TV-IP320PI outdoor ready HD cameras

Plug and play up to 4 PoE cameras*

Video recording supported up to Full HD 720p

Over 6.5 days continuous recording**

Supports ONVIF complaint network camera

TRENDnet’s standalone 4-Channel HD PoE NVR Kit, model TV-NVR104K, offers a comprehensive video display, storage, and management solution which features a plug and play PoE camera installation*. The TV-NVR104K comes with a pre-installed 1 TB hard drive and two powerful TV-IP320PI Outdoor 1.3 MP HD PoE IR Network Cameras. The NVR networks and powers up to four PoE cameras*, auto-recognizes TRENDnet cameras, records over 6.5 days of continuous video**, and supports advanced video playback.


All-in-One HD NVR This HD NVR comes with a pre-installed 1 TB hard drive, two 720p PoE outdoor cameras, network cables, and a mouse. (display sold separately)	Plug, Play, & Power The NVR auto-recognizes and powers TRENDnet PoE cameras—simply connect the two included 720p cameras and add up to two more TRENDnet PoE cameras.	Intuitive Interface Users will find the management interface intuitive and easy to use—quickly navigate live view preferences, recording schedules, and advanced playback options.

TV-NVR104 Hardware
	PoE Ports Plug and play PoE network cameras to the four PoE (IEEE 802.3af) ports with a total PoE budget of 35 Watts
	Storage Bay Pre-installed 1 TB SATA hard drive
	Network Port Ethernet network port
	Display Ports HDMI and VGA display ports
	Audio Ports Audio in and out ports
	USB Ports One USB port for the included mouse and one for configuration backup and firmware upgrade
TV-NVR104 Management
	Remote Access Access the NVR over the internet
	Camera Setup Auto-recognizes compatible TRENDnet cameras*
	Live View Single camera and quad-view modes with variable-time auto-scan function
	Camera Management For each camera, manage on screen display, image settings, PTZ functionality, motion detection, privacy masks, tamper detection, and video loss
	Video Recording Record up to Full 720p HD video at 30 fps in H.264 compression (included TV-IP320PI cameras record up to 1280 x 960)
	Recording Time (A) 6.5 days of recording per camera: 4x cameras with continuous recording at 1280 x 960 at 30 fps (B) 8.5 days of recording per camera: 4x cameras with continuous recording at 720p at 30 fps
	Scheduled Recording Create weekly continuous and motion detection recording schedules for each camera with video overwrite when storage is full
	Advanced Playback Advanced archived video playback with a quick reference timeline and calendar
	Video Export Quickly export specific video types over a specified time
	Dynamic DNS Support Support for dyn.com and NO-IP.org
	IPv6 IPv6 support
	ONVIF Supports ONVIF complaint network camera
TV-IP320PI Hardware
	Adjustable Bracket Fully adjustable integrated mounting bracket provides installation flexibility
	PoE Save installation costs with Power over Ethernet (IEEE 802.3af)
	Outdoor Ready Outdoor IP66 weather rated and an operating temperature range of -30 – 60 °C (-22 – 140 °F)
	1.3 Megapixel Record 1280 x 960 pixel HD video at 30 fps in H.264 compression
	Night Vision Night vision up to 30 meters (100 ft.) in complete darkness
	Smart IR Dynamic IR adjustment optimizes night visibility
	D-WDR Digital Wide Dynamic Range improves video quality in high contrast lighting environments
	IPv6 IPv6 support
	ONVIF Supports ONVIF complaint network camera

Specification

TV-NVR104 (with 1 TB HDD)
Video Input
4 PoE channels
Video Output
HDMI and VGA display outputs
Resolution: 1920 x 1080 (1080p), 1280 x 1024, 1280 x 720 (720p), 1024 x 758 @ 60Hz
Audio
Analog audio in/out (2.0 Vp-p, 1kΩ)
Storage
Supports one 3.5" SATA I/II HDD
Comes with a pre-installed 1 TB HDD. Upgradeable to 6 TB SATA I/II HDD)
Network Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af
Device Interface
10/100 Mbps network port
4 x 10/100 Mbps PoE camera network ports
2 x USB 2.0 ports
HDMI port
VGA port
Analog audio in port
Analog audio out port
Power port
LED indicators (Power, Storage, and Network)
Grounding point
Network Protocol
IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP
HTTP, UPnP, RTSP, RTP, RTCP
Power
Input: 100 – 240 V AC, 50/60 Hz, 1.5 A
Output: 48 V DC, 1 A
Consumption: 50 Watts (with HDD and Max. PoE PD
PoE power budget: 35 Watts
Operating Temperature
-10 - 55 °C (14 - 131 °F)
Operating Humidity
Max. 95% non-condensing
Certifications
CE
FCC
Dimensions
199 x 199 x 47 mm (7.8 x 7.8 x 1.8 in.)
Weight
1.2 kg (2.1 lbs.)
Management Interface
Live view: Single camera or quad-view
Camera management*:
On screen display: camera name, date, week, and date format
Image quality: brightness, contrast, saturation, hue, mirror
PTZ: pan, tilt, zoom, focus, iris, preset points, pattern, cruise, patrol
Motion detection: define custom motion detection areas, motion sensitivity, and triggering channels
Privacy masks: define custom privacy mask areas
Video tamper detection: trigger actions if the viewing field darkens suddenly
Video loss detection: trigger actions if the setup video is lost
Scheduled recording: continuous and motion detection
Video recording: Record up to Full 720p HD video
Recording time**: (A) 6.5 days of recording per camera: 4x cameras with continuous recording at 1280 x 960 at 30 fps; (B) 8.5 days of recording per camera: 4x cameras with continuous recording at 720p at 30 fps
Holiday scheduling for custom recording schedules during observed holidays
Advanced playback: playback multiple channels simultaneously and search video recordings with special event or tag
Video export: tag, cut, and export video clips
HDD: Encoded disk formatting, S.M.A.R.T. disk health monitoring and testing, bad sector detection, storage quota allocation to each video channel, recycle old recordings or send disk full warning to administrator by email
USB external storage: firmware upgrade, import/export configuration file and logs, export recorded video files, search and playback videos directly from external storage
Local live view settings: define screen layout and channel viewing sequence
Alert messages: storage full, storage error, network disconnected, IP conflict, illegal login, and recording exceptions
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Traffic chart and statistics for network management
IPv6 support
Supports ONVIF complaint network camera
Remote Viewing and Management
User interface compatible with Internet Explorer^® 9.0 or higher, Safari^® 4.0 or higher
TV-IP320PI
Lens
Focal length: 4 mm
Focal depth: 20 cm +
Aperture: F2.0
Board lens
Sensor: 1/3” progressive scan CMOS
Viewing Angle
Horizontal: 70°
Vertical: 52°
Diagonal: 89°
Zoom
User-defined digital zoom
Minimum Illumination
IR off: 0.01 lux
IR on: 0 lux
30 meter IR illumination distance
Smart IR
Video
D-WDR: 0-100 scale
Shutter speed: 1/3 - 1/10,000
H.264: 1280 x 960 up to 30 fps
MJPEG: 704 x 480 up to 30 fps
Hardware Standards
IEEE 802.1X
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3af
Device Interface
10/100 Mbps PoE port
Power port (for non-PoE installations, power adapter sold separately (12VDC1A))
Grounding point
Integrated articulated mounting base
Reset button
Housing
Weather rating: IP66
Network Protocol
IPv4, IPv6, UDP, TCP, ICMP, ONVIF v2.2
DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1, v2c, v3)
NFS, SMB/CIFS
HTTP, HTTPS
PPPoE
UPnP, Bonjour, RTSP, RTP, RTCP, SSL
Operating Temperature
-30 - 60 °C (-22 - 140 °F)
Operating Humidity
Max. 95% non-condensing
Certifications
CE
FCC
UL 60950
Dimensions
60 x 60 x 152 mm (2.4 x 2.4 x 6.2 in.)
Weight
375 g (13.2 oz.)
Power
Input: PoE (802.3af)
Consumption: 7 Watts max.
Optional Power Supply (Sold separately)
Output: 12 V DC 1 A
5.5 mm barrel connector
TRENDnet power adapter, model 12VDC1A, sold separately
Management Interface
Multi-language support: English, French, German, Russian, and Spanish
IP address filter
QoS traffic prioritization
Time, date, and text overlay
Image settings: brightness, contrast, saturation, sharpness, smart IR, exposure time (1/3 – 1/100,000), video standard, day/night switch, sensitivity, switch time, mirror, D-WDR, white balance, digital noise reduction
D-WDR enhances video quality in high contrast daytime lighting
3D Digital Noise Reduction enhances night vision quality
Scheduled recording: continuous and motion detection
Video storage: to computer, NAS, SMB/CIFS share, or through software
Motion detection fields: define custom motion detection areas, motion sensitivity, and dynamic motion analysis
Privacy masks: define custom privacy mask areas
Video tamper detection: email notification if the viewing field darkens suddenly
Video playback interface: playback recorded video from remote storage
Browser video playback: advanced playback functionality with visual timeline displaying detected motion and scheduled recordings
Alert messages: storage full, storage error, and illegal login
Snapshot: real time snapshot, motion detection with schedule, video tamper detection with schedule
Supported dynamic DNS services: Dyn.com and NO-IP.com
Management Setting: maximum 32 user accounts
Supports remote management
Compatibility: Internet Explorer^® 9.0 or higher, Safari^® 4.0 or higher
Warranty
TV-NVR104: 2 year limited
TV-IP320PI: 3 year limited

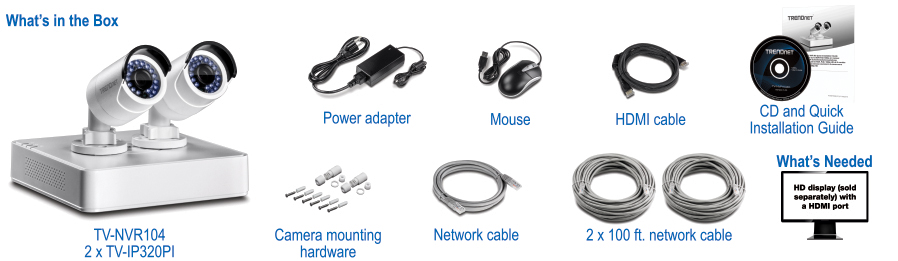

Package Contents

TV-NVR104 Network Video Recorder with pre-installed 1 TB HDD

2 x TV-IP320PI 720p outdoor camera

Multi-Language Quick Installation Guide

CD-ROM (User’s Guide)

2 x network cable (30 m /100 ft.)

Network cable (1.8 m / 6 ft.)

HDMI cable (1.8 m / 6 ft.)

Optical mouse

Power adapter (48V DC, 1A)

*Features applies only to integrated cameras. Please see the compatible camera list on http://www.trendnet.com/products/nvr-solutions for more detail.
**6.5 days of continuous video per camera with four cameras recording 1280 x 960 at 30 fps and set to medium VBR
